Description

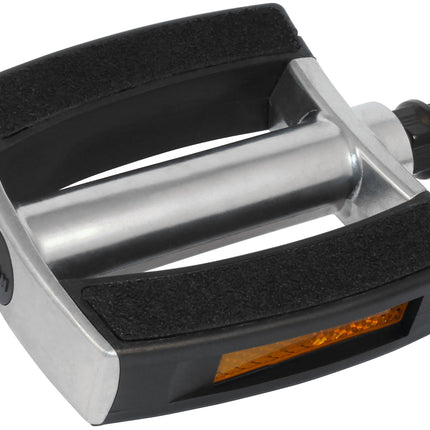

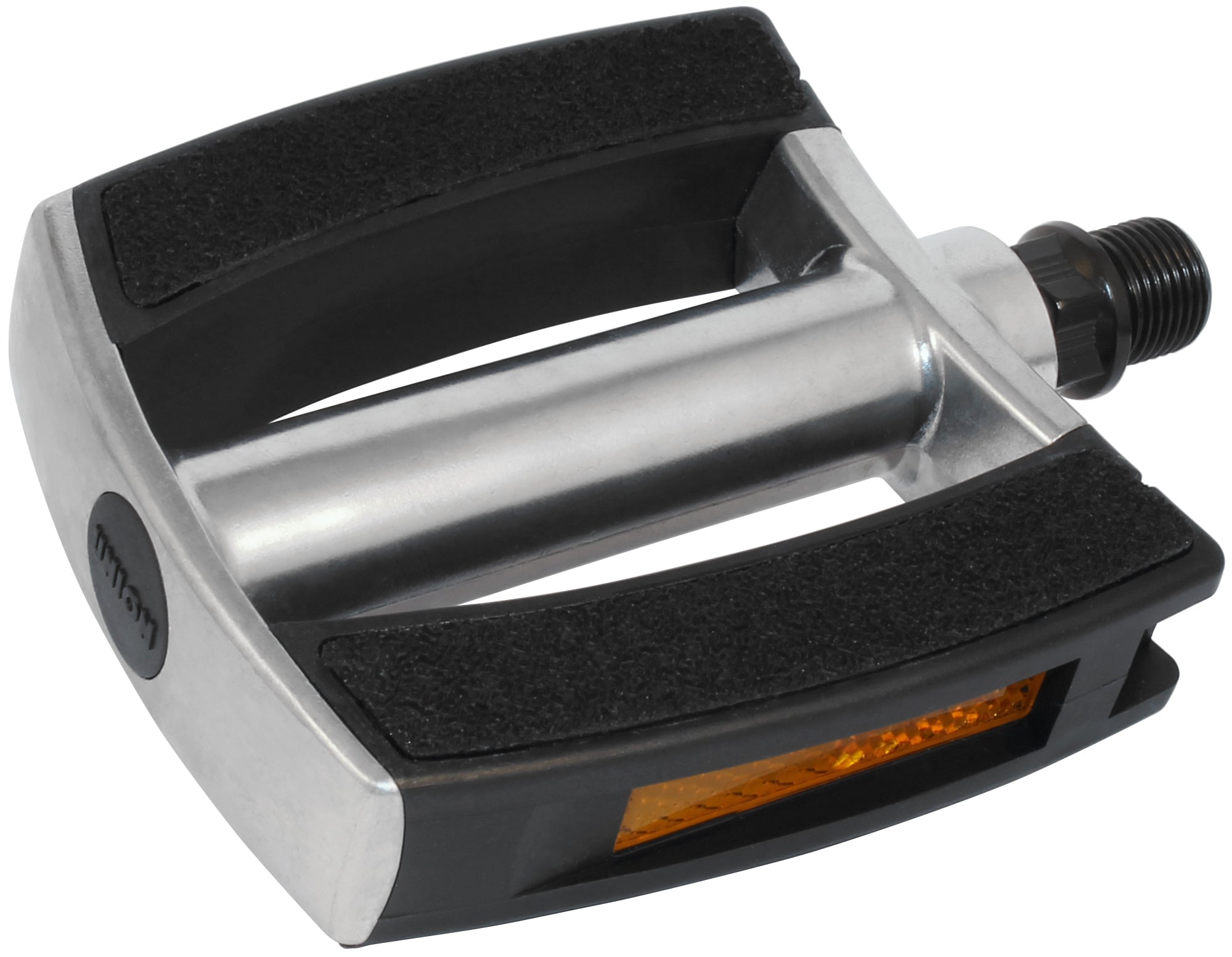

A bicycle pedal with a "non-slip" insert on both sides made of patented SANDBLOCK® material, a durable polypropylene axle housing and cage, specially designed for use on electric bicycles. Can also be used on city, trekking and hybrid bicycles. Features: The "lightweight" ball bearing system provides a significant saving in weight and height. The pedals are each equipped with integrated approved reflectors on both sides and a closed bearing system. Pedal type "3 component pedal", which consists of: a cast aluminum axle housing, polished to a high gloss or black (electro-dyed black)
the pedal cage is made of black polypropylene
The extra-large "anti-slip" insert in the cage is made of gray TPE (thermoplastic elastomer). Ball bearing
Adjustable and lightweight ball bearing system, according to the "ball & cone" principle, on both sides With 13 x 3/32" ball bearings on both sides Axle
Boron steel, heat treated to 75HRA (+/-3)
With 9/16"- 20 TPI thread Reflectors
Integrated into the pedal cage
Approved according to BS, JIS, TPP, as well as the German StVZO standards Dimensions
111* x 90 x 27 mm (*length x width x height)
*length = maximum length of pedal mounted (part that protrudes beyond the crankset) Weight
516 gr/per set Standard
The pedal complies with the ISO standard. ISO 4210-8: "Cycling - Safety requirements for bicycles - Pedal and crankset test methods" SANDBLOCK Sandblock® is the official Marwi-registered trademark for a patented composition of materials that forms a wear-resistant, perfect anti-slip insert for pedals. The material's anti-slip properties are guaranteed, even when wet or stained with oil or grease. This anti-slip insert is inseparable from the pedal thanks to a special, waterproof technology. UNION SANDBLOCK® pedals feature an extra-large anti-slip insert (for more direct contact with the cyclist's shoe) and are specially designed for use on e-bikes. The advantages of this high-quality SANDBLOCK® anti-slip insert are:
A very good anti-slip function, much better than that of the usual TPR (rubber) insert
Significantly more wear resistance compared to the usual TPR (rubber) insert The anti-slip function remains optimal, even when the material surface is wet or stained with oil or grease. The SANDBLOCK® anti-slip surfaces are highly wear-resistant, water-resistant, and firmly bonded to the robust polypropylene cage of the pedal using a new, patented technology. Compared to the self-adhesive sandpaper versions of pedals used, this strong bond is waterproof and cannot be separated or removed from the pedal. Technical details and test results:
Various laboratory tests prove that the SANDBLOCK® cannot be separated or removed from the pedal cage, even when using tools.
The anti-slip function of the SANDBLOCK® has much better performance than the standard anti-slip material made of sandpaper
An anti-slip durability test shows that with a load of 30 kg and at 10,000 cycles, the material wears off only 0.25 mm When using standard sandpaper, this already shows signs of wear after 20 cycles. SANDBLOCK® does not do this.
Standard sandpaper is easily separated from the pedal's polypropylene cage. This isn't the case with SANDBLOCK®. By using SANDBLOCK® material instead of TPR or standard sandpaper, these UNION pedals offer an even higher level of safety for cyclists in all weather conditions.
